  Robie Sr. ® 2398 By Radio Shack ® | Previous | 1 | 2 | 3 | 4 | Next |

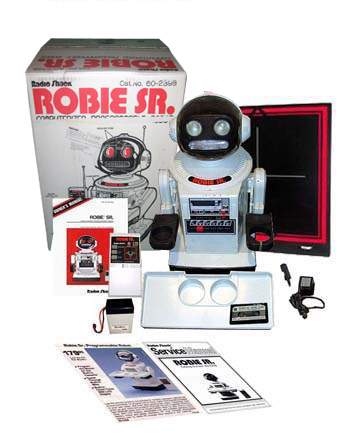

Robie Sr. 2398 By Radio Shack
Robie Sr. ® 2398 By Radio Shack ®
Click to Enlarge
Robie Sr. 2398 By Radio Shack
Robie Sr. ® 2398 By Radio Shack ®
Click to Enlarge


Robie Sr. 2398 By Radio Shack
Robie Sr. ® 2398 By Radio Shack ®
Click to Enlarge


Robie Sr. 2398 By Radio Shack
Robie Sr. ® 2398 By Radio Shack ®
Click to Enlarge
Robie Sr. 2398 By Radio Shack
Robie Sr. ® 2398 By Radio Shack ®
Click to Enlarge

ROBIE ® SR - Radio Shack ® has created toy robots throughout the years and in the 80's created a line of small personal robots. It is truely astounding what they, and other companies, were able to acomplish utilizing the resources at the time to manufacture and sell this product line. They did not have a onboard programmable computer, but the programming is done by recording the movement commands to a regular cassette tape which can be played back at certain times by using the built-in clock.

Robot Specifications:
1.    Tape Cassette Recorder Type: 2 track monaural , Tape Selection: normal bias only , Tape Speed: +/- 3% , Wow & Flutter: within 0.3%
2.    Alarm Clock display: LCD accuracy: +/- 2 sec/day power: 1.5v AA battery duration: typical 5000 hours
3.    Recharger (U.L. listed) coax plug (negative middle) in: 120 VAC - out: 6 VDC, 400 ma
4.    Main Battery Type: sealed lead acid , Output Rating: 6 V, 4.0 Ah , Physical Size: 2 1/4"L x 1 3/4"W x 4"H , Terminals / Connectors: lead wires with coaxial 'barrel-type' connector (negative center pole)


5.    General Operating time: Battery Life: 4 hours continuous at 5.5 V (normal) , Battery Indicator: red light indicates when discharged to 5.77 volts
6.    Operating Temperatures: 41 Degrees F~104 Degrees F (5 Degrees C~40 Degrees C)
7.    Microphone type: dynamic, 300 - 600
8.    Operating R/C frequency: The Remote came in 3 Frequencies: 49.860 Mhz (US), 27.145 Mhz (Europe), 40.680 Mhz (TAL)
9.    External outlets: Speaker: 8 ohms
10.    Bulbs for eye-lights 2.8v, 200ma use not more than 3v 250ma
11.    Remote Control 4 * 1.5v (AA)

Accessories :     Controller, Detachable tray 2.2 lbs maximum weight allowance, Demonstration cassette tape, Battery charger, Home Base, Tuner
