  R.A.D. Robot TM for ToyMax ® [Battery] | Previous | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | Next |

Tomy Omnibot Robots Battery
R.A.D. - NITRO
Rechargeable Battery
Dim. 2 7/8 " (74 mm)
Dim. X 2 3/16 " (55 mm)
Dim. X 5/8 " (17 mm)
Click to Enlarge
R.A.D. Robot
Radio Shack 23-338
Rechargeable Battery
Dim. 2 7/8 " (74 mm)
Dim. X 2 3/16 " (55 mm)
Dim. X 5/8 " (17 mm)
Click to Enlarge
R.A.D. Robot
Radio Shack 23-343
Rechargeable Battery
Dim. 2 7/8 " (74 mm)
Dim. X 2 3/16 " (55 mm)
Dim. X 5/8 " (17 mm)
Click to Enlarge
R.A.D. Robot
NITRO
Rechargeable Battery
Dim. 2 7/8 " (74 mm)
Dim. X 2 3/16 " (55 mm)
Dim. X 5/8 " (17 mm)
Click to Enlarge
R.A.D. Robot
TYCO RC
Rechargeable Battery
Dim. 2 7/8 " (74 mm)
Dim. X 2 3/16 " (55 mm)
Dim. X 5/8 " (17 mm)
Click to Enlarge

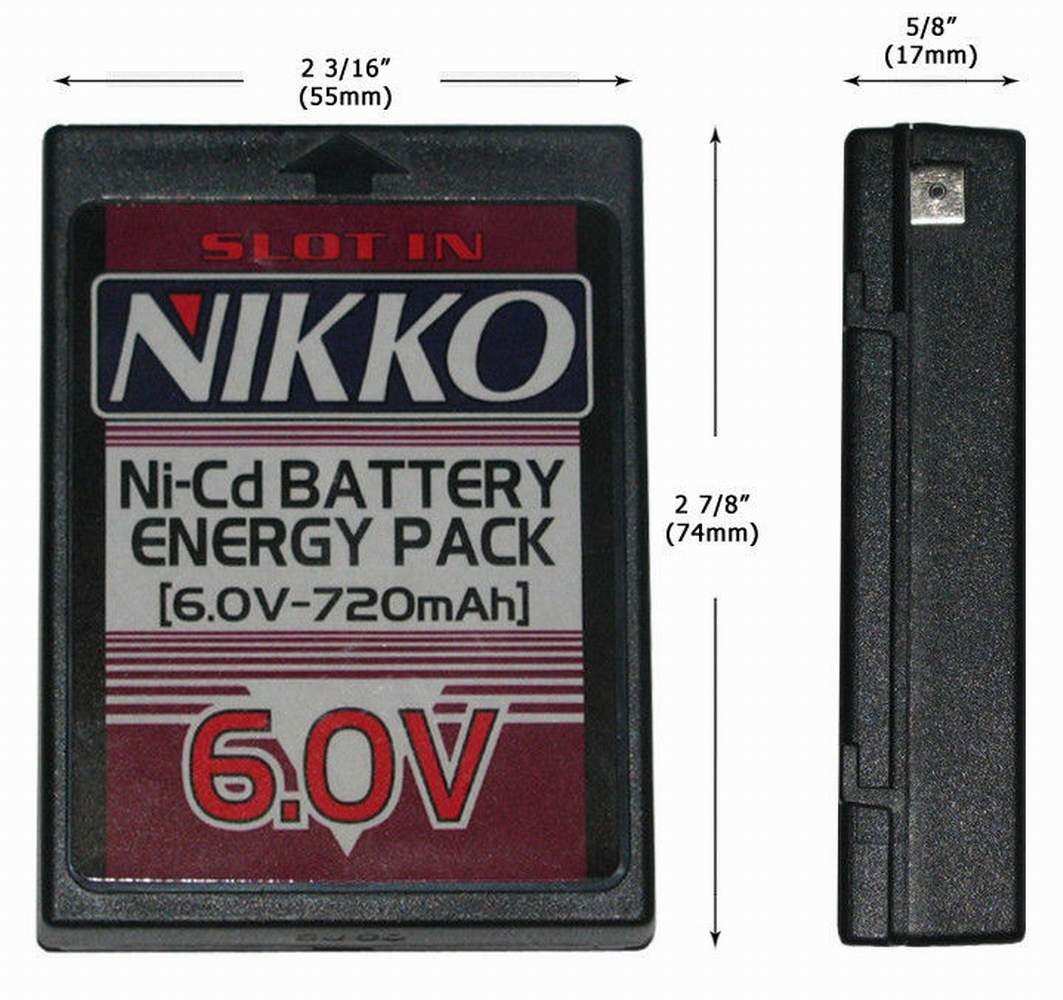

R.A.D. Robot
NIKKO
Rechargeable Battery
Dim. 2 7/8 " (74 mm)
Dim. X 2 3/16 " (55 mm)
Dim. X 5/8 " (17 mm)
Click to Enlarge

Tomy Omnibot Robots Battery
R.A.D. - R.A.D.
Battery Charger
Click to Enlarge
R.A.D. Robot
Radio Shack
Battery Charger
Click to Enlarge
R.A.D. Robot
Radio Shack
Battery Charger
Click to Enlarge
R.A.D. Robot
NITRO
Battery Charger
Click to Enlarge
R.A.D. Robot
TYCO RC
Battery Charger
Click to Enlarge
R.A.D. Robot
Battery Side View
Click to Enlarge

The above Battery is for the R.A.D Robot Family.
For battery replacement do a search on the internet for any of the batteries listed above. ( NEW BATTERIES FIT HARD. )


R.A.D. Robot
Nikko
Battery Charger
Click to Enlarge
R.A.D. Robot
Radio Shack 23-327
Battery Charger
Click to Enlarge
R.A.D. Robot
New Bright
Battery Charger
Click to Enlarge
R.A.D. Robot
New Bright 9.6 VDC
Rechargable Battery
Click to Enlarge
R.A.D. Robot
Missile
Click to Enlarge

The above Battery is a substitute replacement battery for R.A.D 1.0 or R.A.D. 2.0 Robot. It is a 9.6 VDC and You use it at your own risk. I do use it with both robots and it gives me longer robot time, more power and faster speeds for the robots. I would caution you that you can run the R.A.D. for short times only as the motors can heat up, but that has not happened with me. For prolonged running use the recommended battery.

The Missile diagram in also included, for those who need missiles and need to make them.


The above Battery is for the R.A.D Robot Family. For battery replacement do a search on the internet for any of the batteries listed above. Here are some web sites to look for batteries:

BATTERIES . . . eBay and search for Radio Shack r/c battery
BATTERIES . . . http://www.amazon.com/Tyco-6-0V-Turbo-Battery-Charger/dp/B00000ISUN
BATTERIES . . . http://www.rchobbyexplosion.com/Nikko_Battery_Packs_and_Chargers_s/16.htm


There is no warranty expressed or implied with this procedure. By using any information from this web site, you agree not to hold responsible this site, me, nor any of its representatives, for any injuries and/or damages, both physical and/or psychological, that may arise from the use and/or misuse of anything derived from this site. The user further agrees that such information/pictures/software does not constitute any guarantee of accuracy, safety or reliability, and that cannot be held responsible for any way. The user agrees to proceed at their own risk.


Source: My Collection - Updated 02-06-2009
