  Omnibot ®2000 - Arm Circuit Board & Assembly Procedure | Previous | 1 | 2 | 3 | 4 | 5 | 6 | 7 | Next |

CIRCUIT BOARD & ROBOT ARM DETAILS

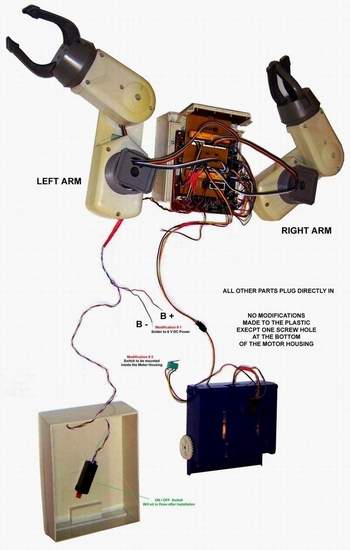

THE COMPLETE MODIFICATION KIT LAYOUT

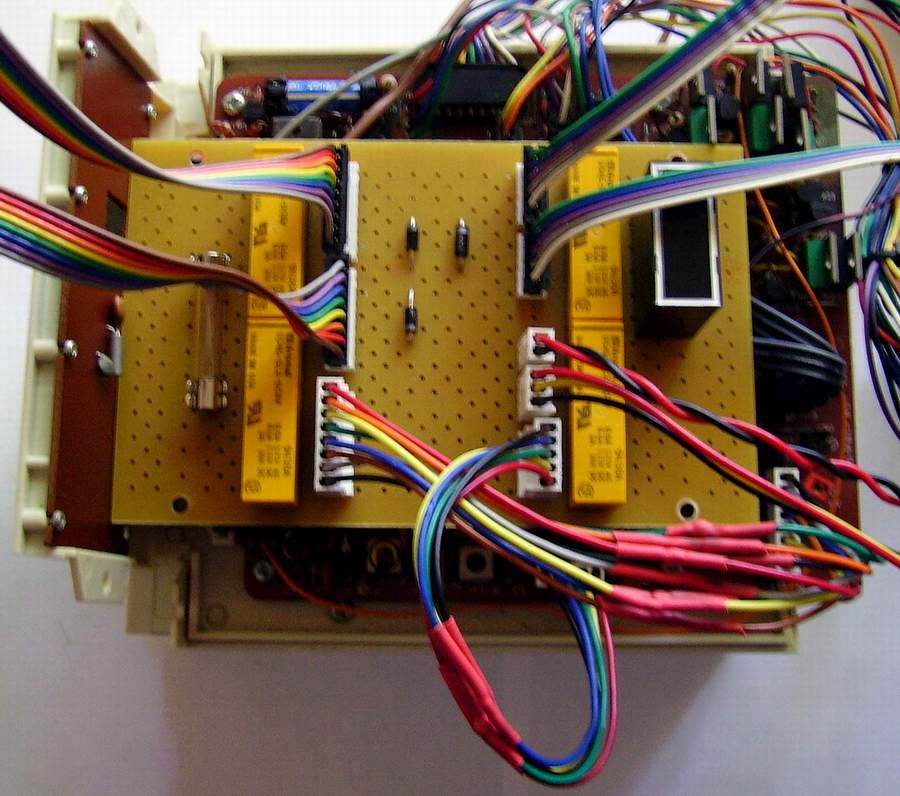

Motorized Arm Circuit Board Mounted on The Robot Circuit Board,
The Left and Right Arms, The Harnesses to the robot circuit board,
the power harness that lays in the robot draw and the selector switch
that is mounted inside the motor housing. The Harnesses to the
robot circuit board must be properly oriented, and must be plugged into the proper socket. The Harnesses CANNOT be interchanged

Click to Enlarge

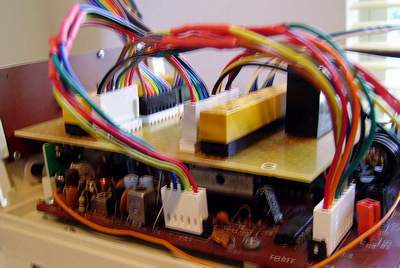

Motorized Arm Circuit Board Mounted on The Robot Circuit Board
The Harnesses to the robot circuit board must be properly oriented,
CANNOT be interchanged and must be plugged into the proper socket.
Click to Enlarge

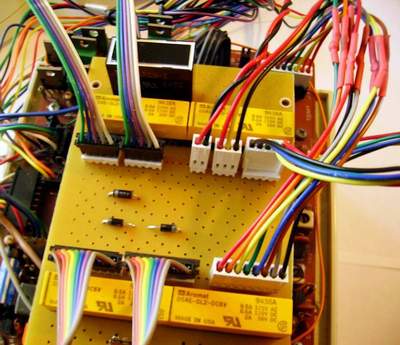

Motorized Arm Circuit Board Mounted on The Robot Circuit Board
The direction of the installed relays is critical to the operation
Note: the bar on the relay is facing up toward the other relay
The Left arm and right arm harness CANNOT be interchanged
and must be plugged into the proper socket.
Click to Enlarge

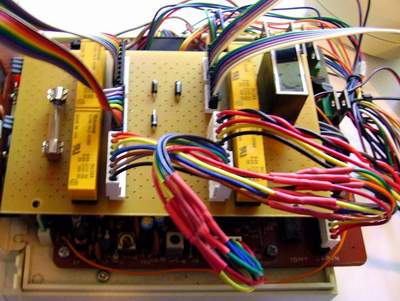

Motorized Arm Circuit Board Mounted on The Robot Circuit Board
The direction of the installed relays is critical to the operation
Note: the bar on the relay is facing up toward the other relay
The Left arm and right arm harness CANNOT be interchanged
and must be plugged into the proper socket.
Click to Enlarge

Motorized Arm Circuit Board Mounted on The Robot Circuit Board
The direction of the installed relays is critical to the operation
Note: the bar on the relay is facing up toward the other relay
The Left arm and right arm harness CANNOT be interchanged
and must be plugged into the proper socket.
Click to Enlarge

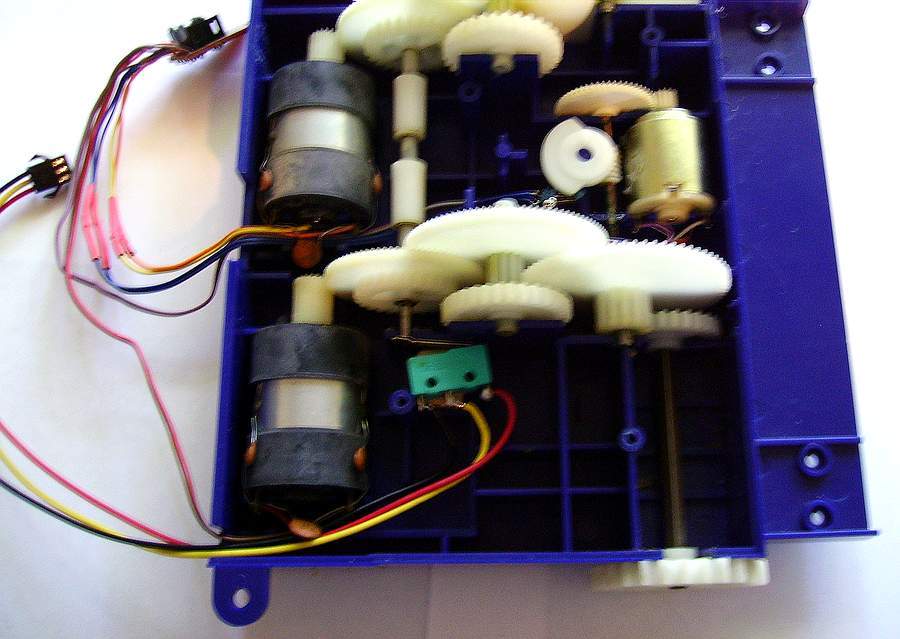

Control Switch Mounted In The Motor Assembly
Click to Enlarge

Control Switch Mounted In The Motor Assembly

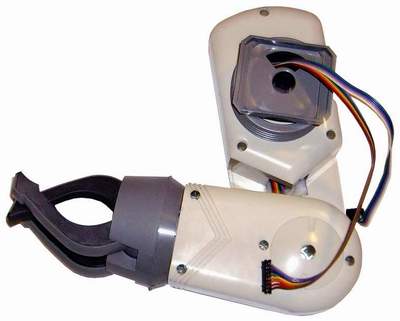

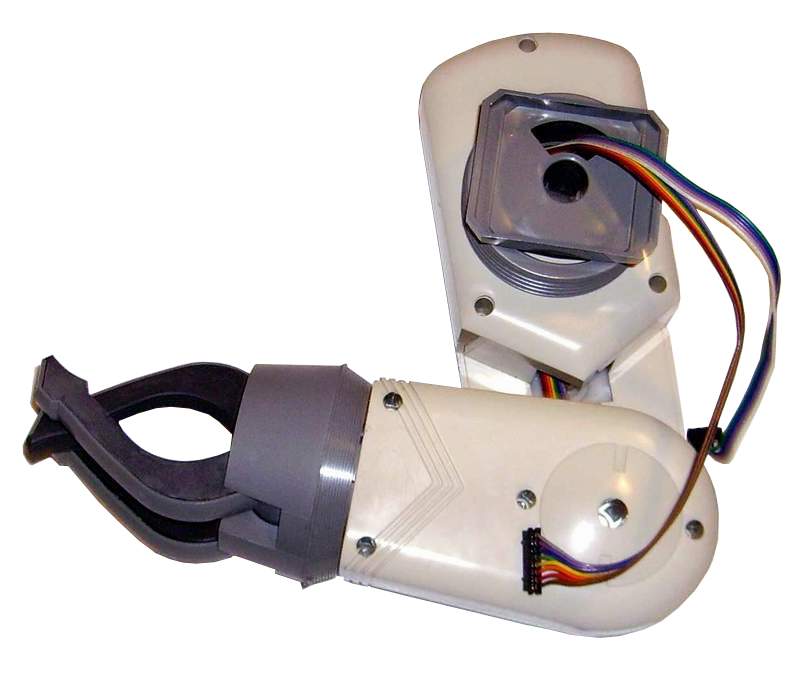

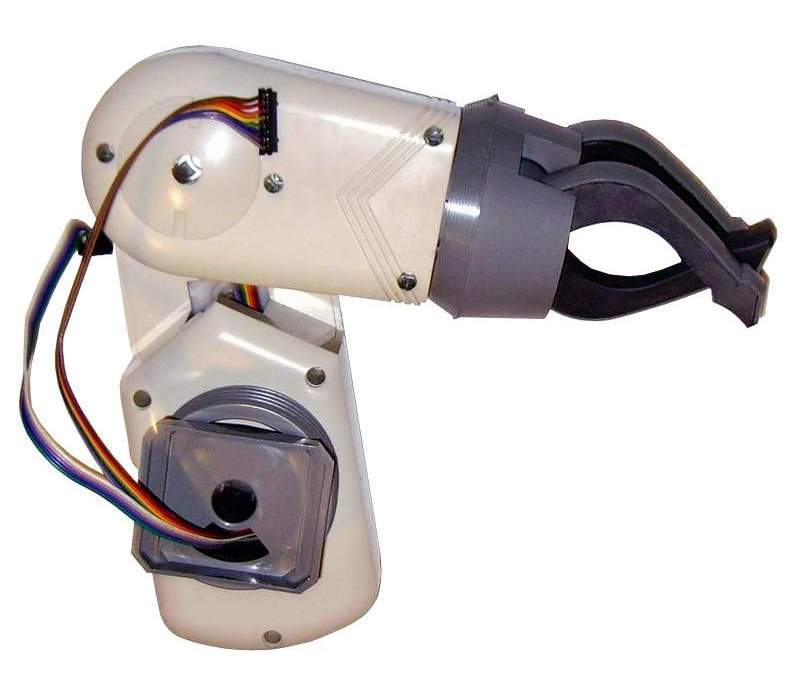

Robot Motorized Left Arm (Added)
Click to Enlarge

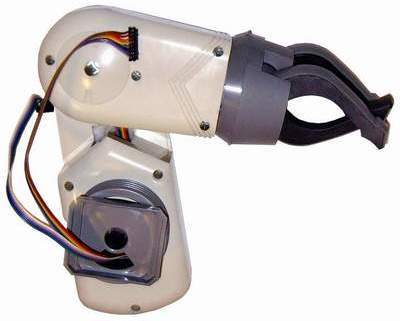

Robot Motorized Right Arm
Click to Enlarge
