MOVIT MR-999 ® by EK Japan Co., Ltd. ®

Robot Arm MOVIT MR-999
MOVIT MR-999 ®
Click to Enlarge
Robot Arm MOVIT MR-999
MOVIT MR-999 ®
Click to Enlarge

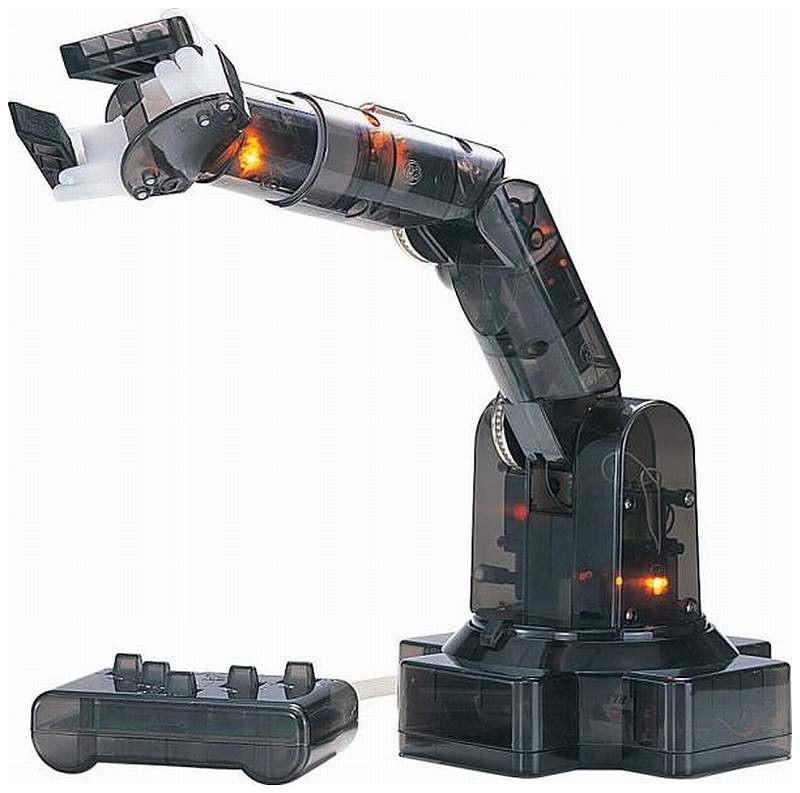

Robot Arm MOVIT MR-999
MOVIT MR-999 ®
Click to Enlarge

Robot Arm MOVIT MR-999
MOVIT MR-999 ®

Robot Arm MOVIT MR-999
MOVIT MR-999 ®

Robot Arm MOVIT MR-999
MOVIT MR-999 ®
Click to Enlarge

    The ROBOTIC ARM TRAINER - MOVIT MR-999 ®

    The Robotic Arm Trainer teaches the basic robotic sensing and locomotion principles while testing your motor skills as you build and control the arm.

    Five motors and five joints allow for flexibility. You can command this unit with its five switch wired controller with lights to grab, release, lift, lower, rotate wrist, and pivot sideways. Five axes of motion
    Base to rotate left and right: 350 degrees.
    Shoulder moving range: 120 degrees.
    Elbow moving range: 135 degrees.
    Wrist rotate CW & CCW: 340 degrees.
    Gripper open & close: 50 mm (2 inches).
    Product Dimensions: Maximum length outwards: 360mm (14.2 inches).
    Maximum heights upwards: 510mm (20.1 inches).
    Maximum Lifting Capacity: 130g (4.6. oz)

    Control Box: 5 switch controller.

    EK Japan Co., Ltd.

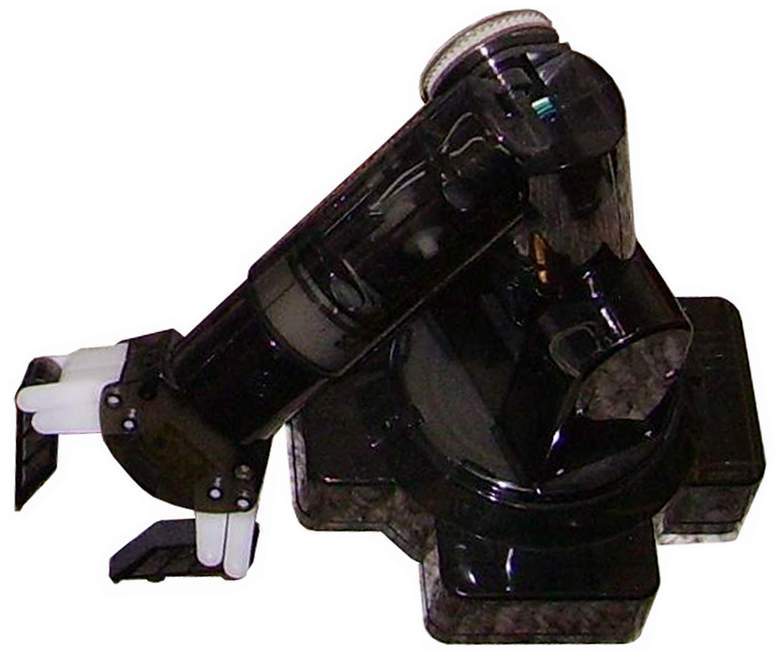

Robot Arm MOVIT MR-999
MOVIT MR-999 ®
Click to Enlarge
Robot Arm MOVIT MR-999
MOVIT MR-999 ®
Click to Enlarge
Robot Arm MOVIT MR-999
MOVIT MR-999 ®
Click to Enlarge


RobotArm ® Trainer SVI 2000
Detailed specific information for this Robot is contained in the Instruction Manual and is available on this site. This series of robots have similar functions, but the detail information can be different.

To Download Instruction Manuals Click On The Images. These files are large. They are Free. These files are as clean as I can make them, they all work for me, you download at your own risk. No Warranties Express or Implied. It is suggested that you do not Open The files in your browser window. Right Click on your mouse button and "Save Target" or "Save Link" to your computer. The file will or should start downloading/or ask you where to download to, and give you a window. All browsers will not work the same.

NOTE: See this link for software: http://www.elekit.co.jp
